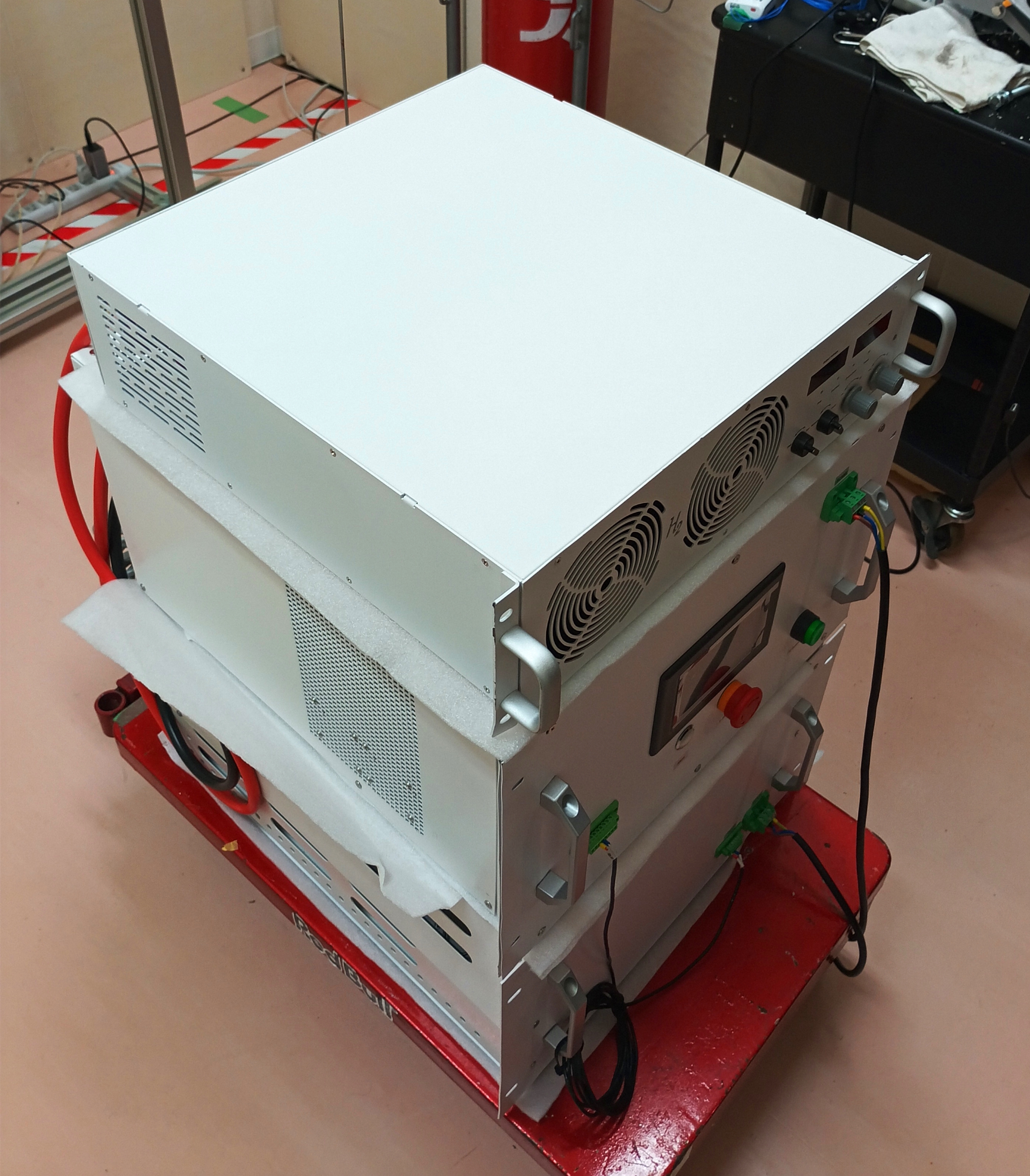

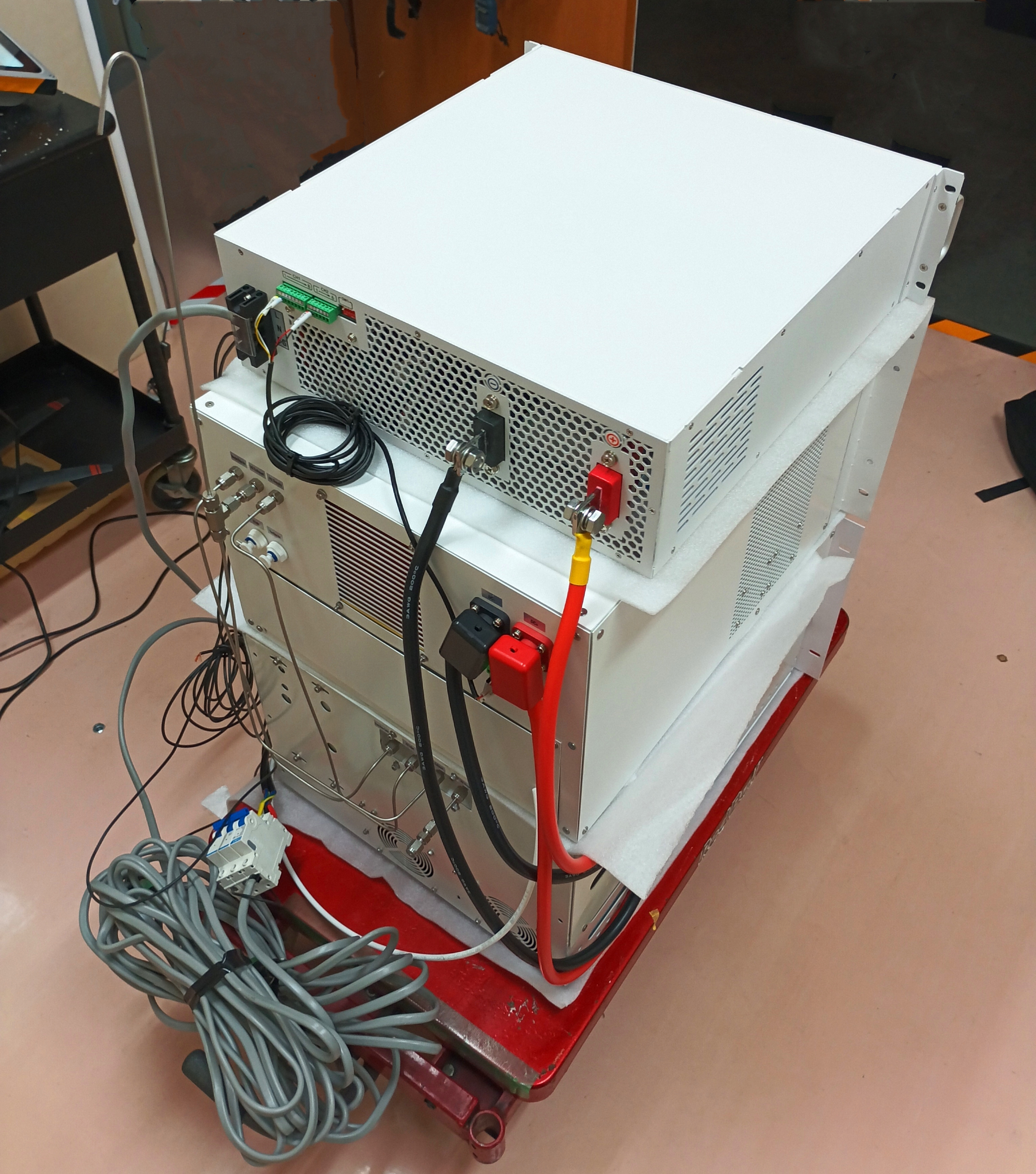

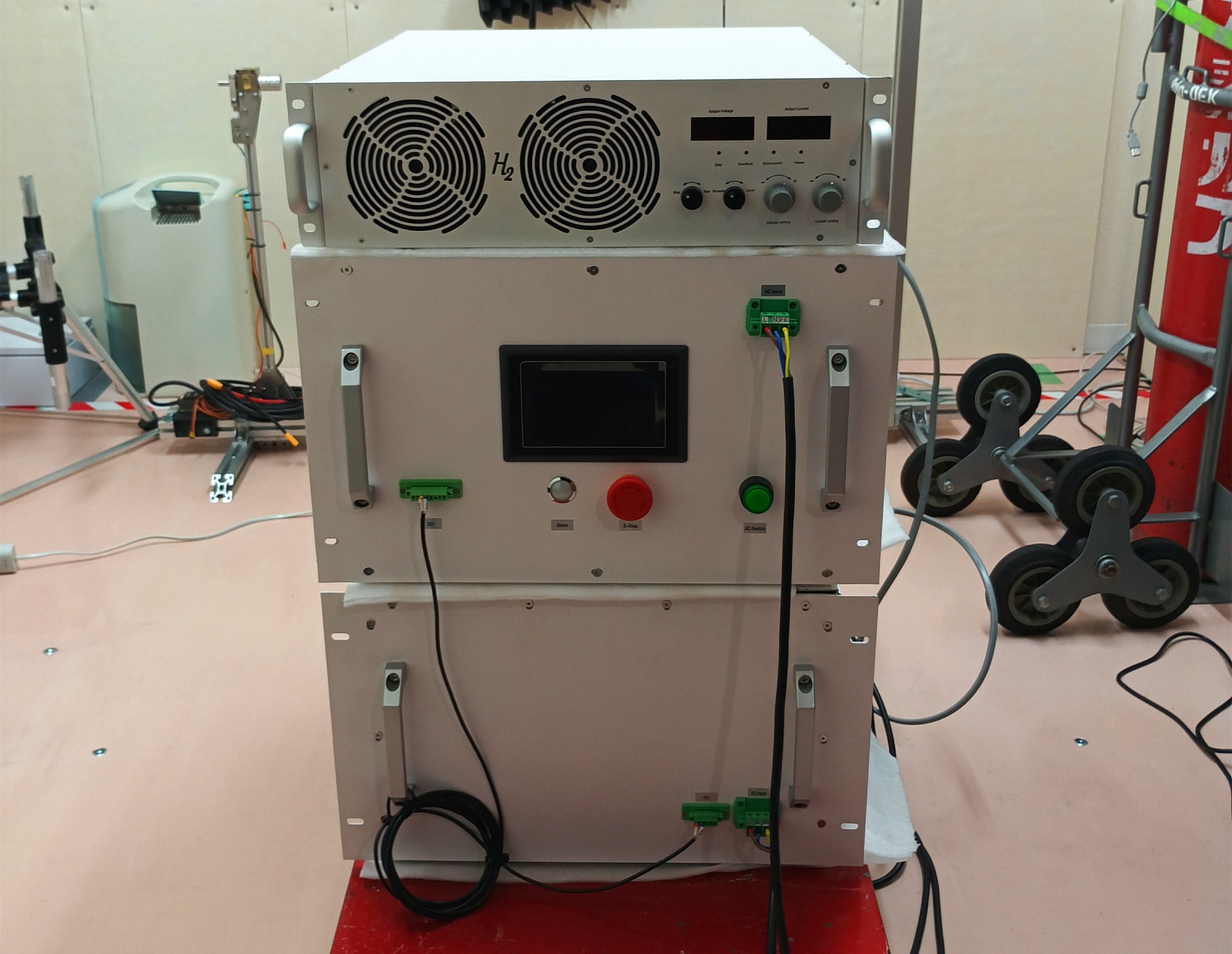

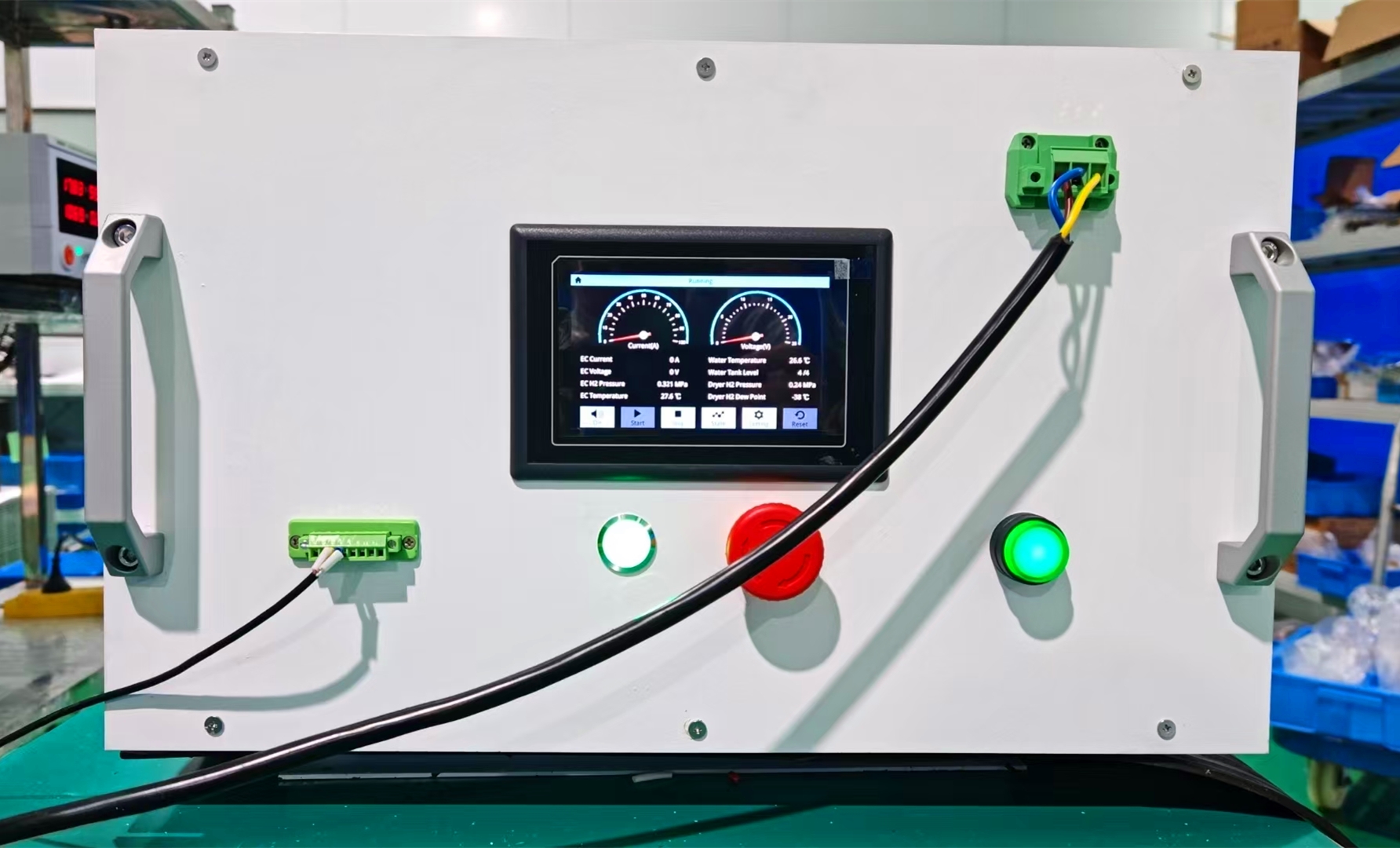

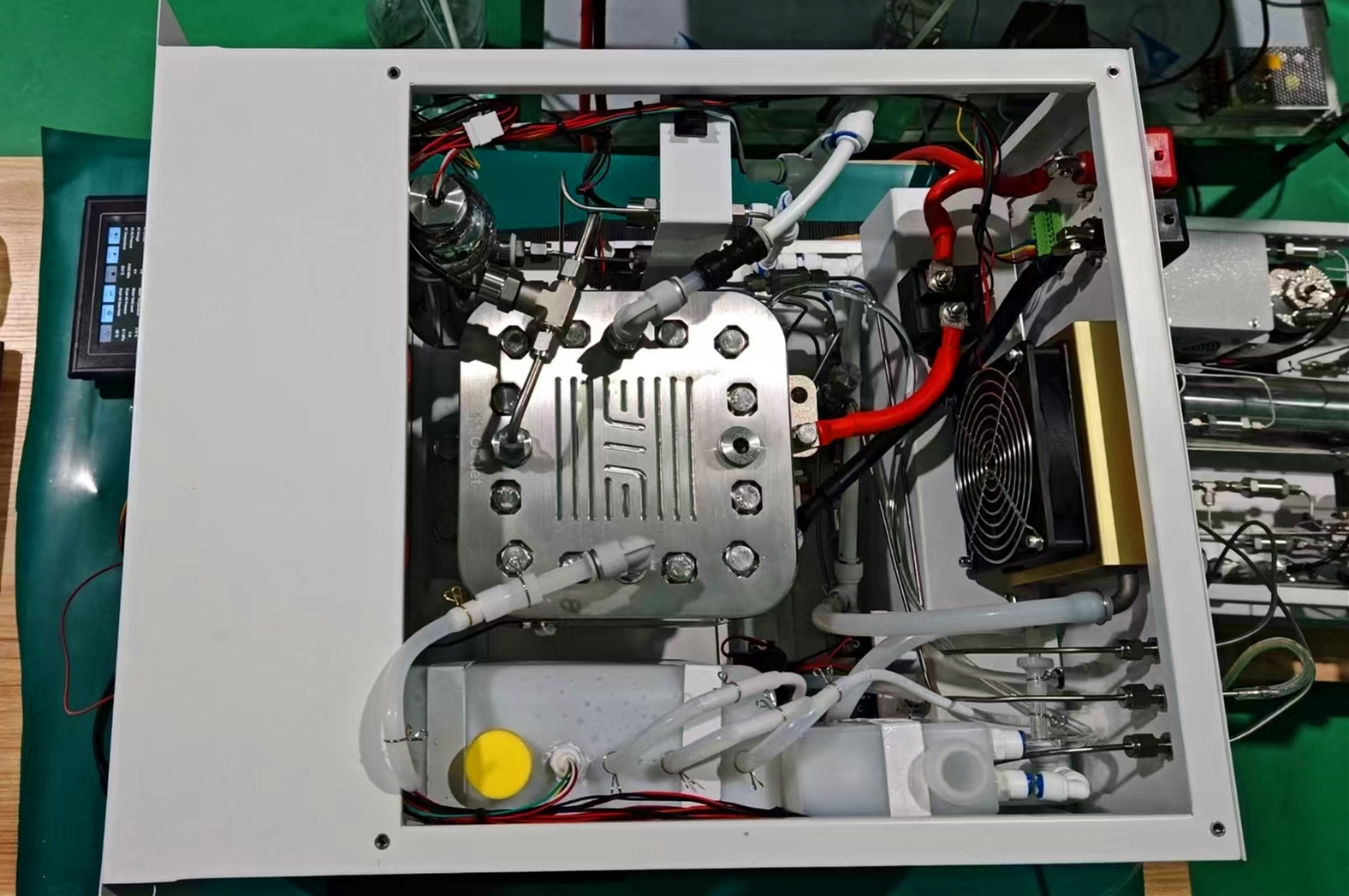

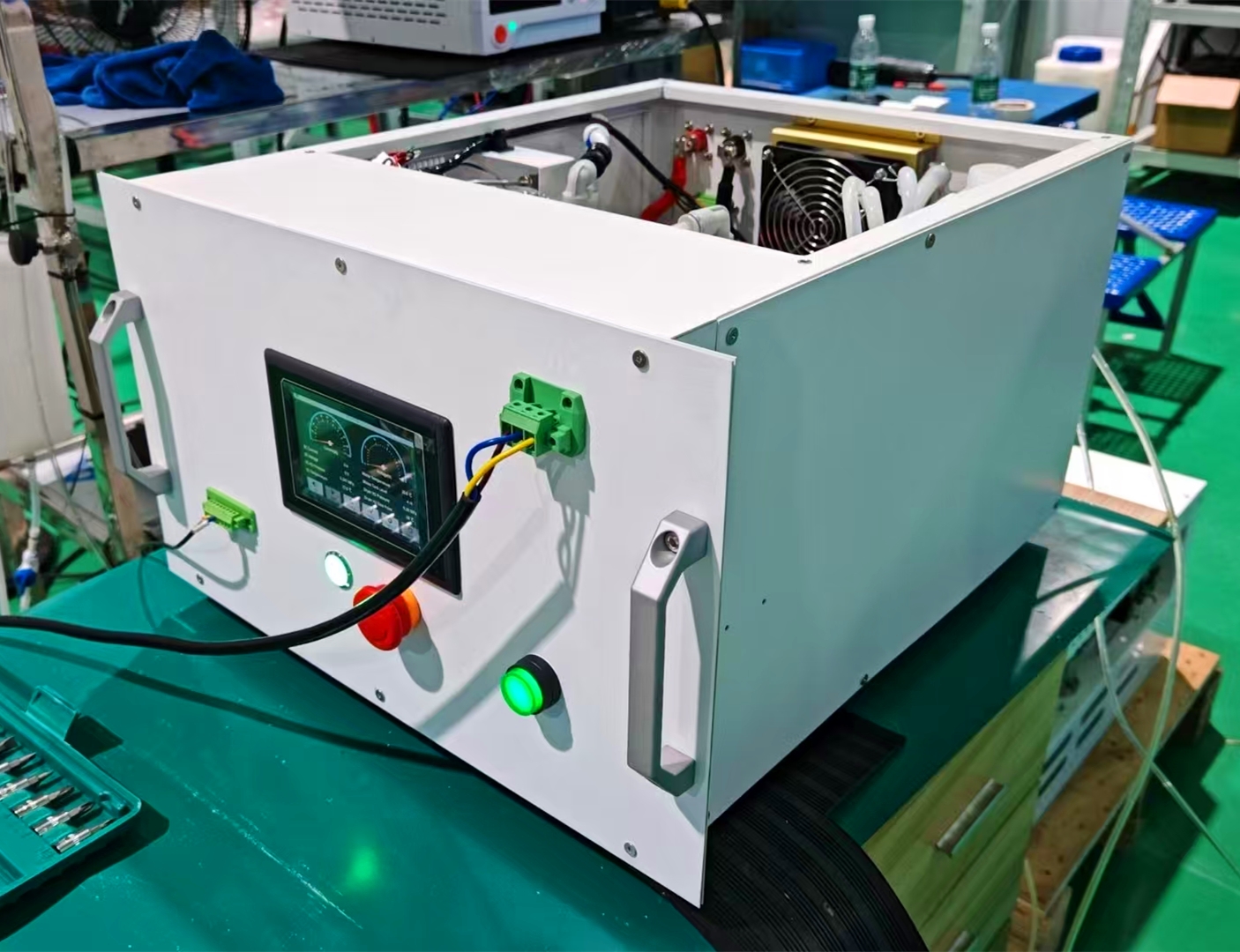

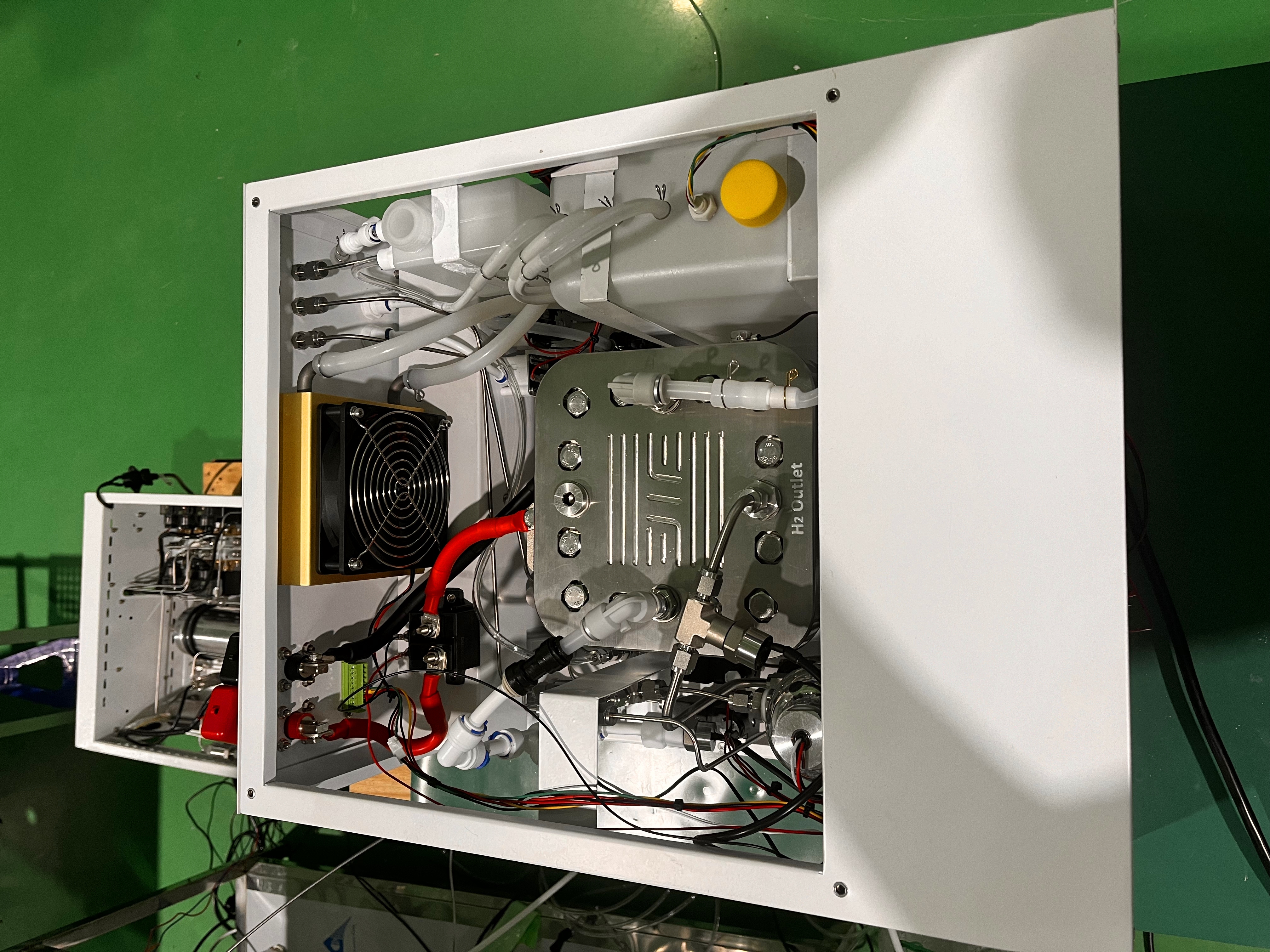

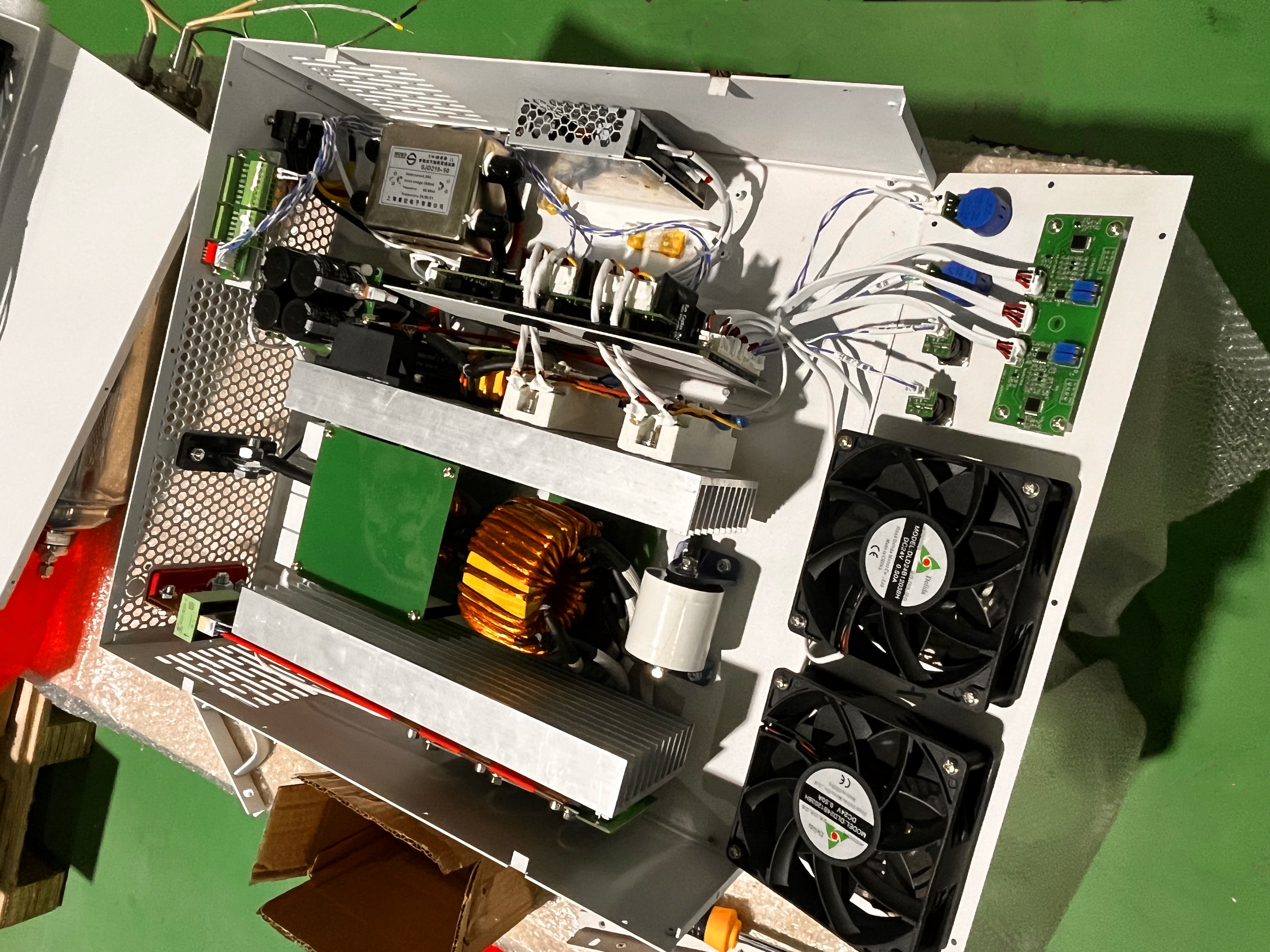

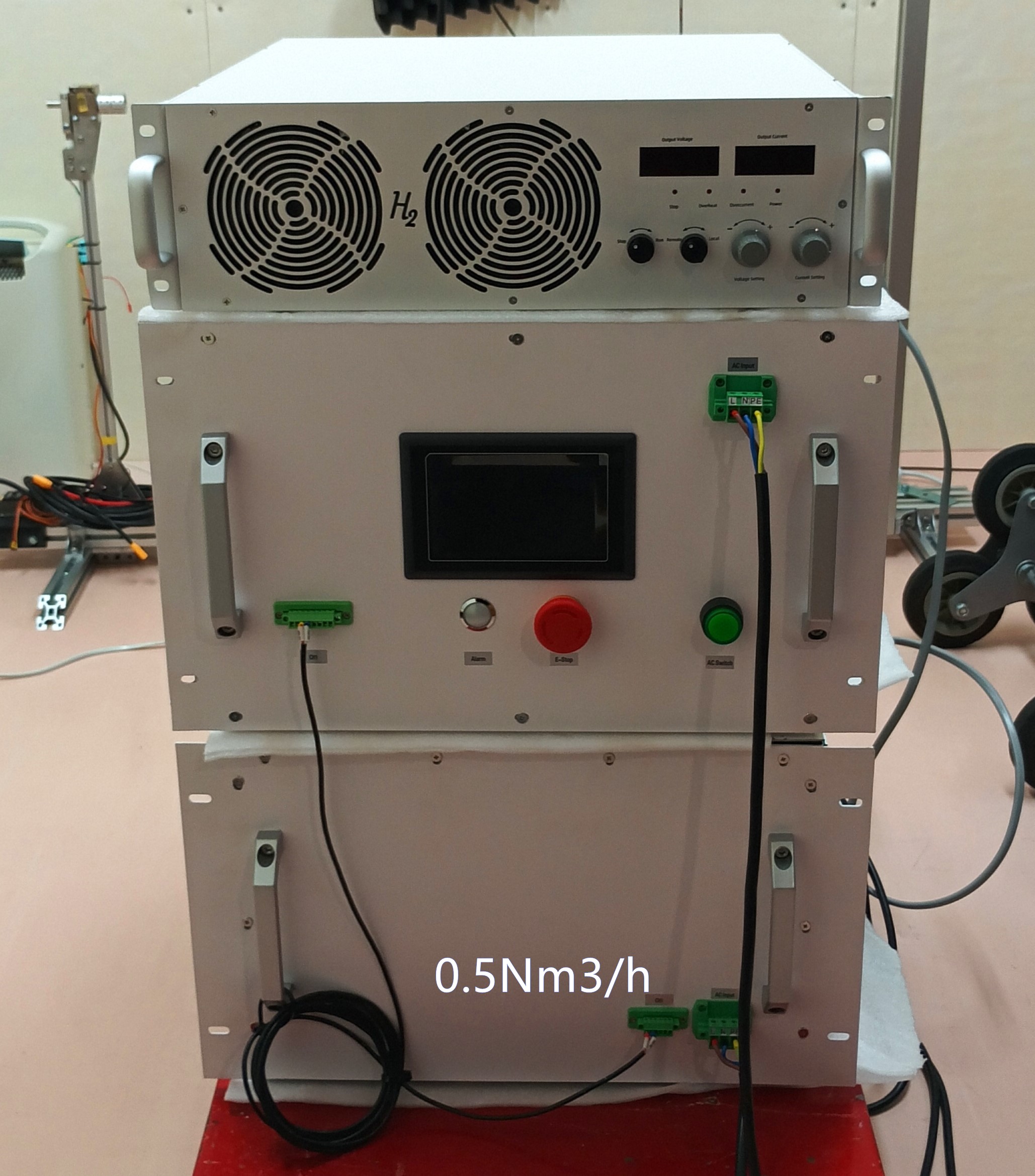

Adopting PEM electrolysis technology, the system is composed of AC/DC power supply, hydrogen generator and purifier. Rated hydrogen output is 0.5Nm³/h with purity of 99.99% and adjustable outlet pressure 0~0.85MPa, max power 5.5kW at 100VAC input. It supports local/remote dual control and touchscreen parameter setting. Standard piping design and only quarterly filter replacement guarantee stable operation under wide ambient conditions.
No. | Item | Unit | Value | Remark |
1 | Hydrogen production rate | Nm³/h | 0.5 | |
2 | Outlet hydrogen pressure | MPa | 0~0.85 | |
3 | Hydrogen purity | % | 99.99 | |
4 | Water consumption | L/h | 0.5 | Water from H₂ & O₂ outlets flows back to water tank |
5 | Required water conductivity | uS/cm | <0.1 | |
6 | Rated input voltage | VAC | 100 | |
7 | Max input power | kW | 5.5 | |
8 | Protection class | / | IP20 | |
9 | Operating ambient temp | ℃ | 0~45 | |
10 | Operating humidity | / | 30%~90%RH |
